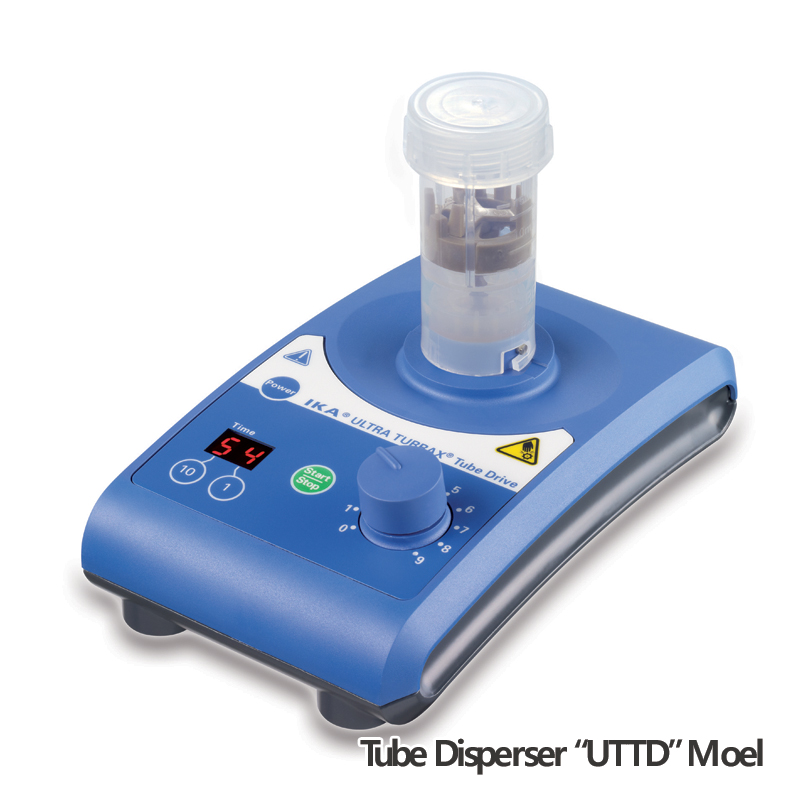

Model | Type | 조절방식 |
3645000 | UTTD | Scale (0 ~ 9) |
25005981 | UTTD P control | Digital |
Model | 3645000 | 25005981 | |
Reversible | UTTD | UTTD P control | |
Motor Rating in/out | 20W / 17W | 36W 28W | |
Viscosity max. [mPas] | 5000 | ||
Volume Range | 20ml Tube | 2 ~ 15 ml | |
50ml Tube | 15 ~ 50 ml | ||
Reversible | X | O | |
Speed Display | Scale (0 ~ 9) | Digital (deviation 3%) | |
Display | LED (Timer) | OLED | |
Speed Range | 300 ~ 6000 rpm | 400 ~ 8000rpm | |
Speed Control | Stepless | 10 RPM Steps | |
Timer | 1 ~ 59 sec : 300 ~ 6000 rpm 1 ~ 29 min : 300 ~ 4000 rpm | 10 sec ~ 30 min | |
Size | w100×d160×h40 mm | w122×d178×h54mm | |
Weight | 0.75 kg | 0.9 kg | |
USB Interface | X | O | |
Precess Type | Batch | ||
Noise without element | 50 dB(A) | ||
운용가능온도 / 습도 | 5-40 °C / 80% | ||
방진/ 방수 보호 등급 | IP20 | ||
Power | 110V ~ 220V, 50/60 Hz | ||
Power Input (W) | 20 | 36 | |
DC Voltages (V=) | 24 | 24 | |
소비전력 (mA) | 800 | 1500 | |
Model | Tube Type | 용량 |
3703000 | ST-20 | 20 ml |
3700500 | ST-20 | |
3699500 | ST-50 | 50 ml |
3701500 | ST-50 |
Model | Tube Type | 용량 |
3703100 | DT-20 | 20 ml |
3700600 | DT-20 Sterile | |
20003207 | DT-20 ECO | |
3699600 | DT-50 | 50 ml |
3701600 | DT-50 Sterile | |
20003213 | DT-50 ECO |
Model | Tube Type | 용량 |
3703200 | BMT-20-SUS Ball | 20 ml |
3703300 | BMT-20-Glass Ball | |
3700701 | BMT-20-S-M-Gamma Tube/stn. Steel Balls | |
20017448 | BMT-20-S-M-Gamma Tube with stirring element,sterile, glass balls, membrane lid | |
3699700 | BMT-50-SUS Ball | 50 ml |
3701700 | BMT-20-SUS Ball | |
3699800 | BMT-50-Glass Ball |
Model | Tube Type | 용량 |
20016316 | DIS-50-S-M Tube with dispersing element, stainless steel | 50 ml |
20016317 | DIS-50-T-M Tube with dispersing element, titanium | |
20016318 | DIS-300-S-M Tube with dispersing element, stainless steel | 300 ml |
20017313 | DIS-300-S-M.50 Tube with dispersing element, stainless steel |
Model | Tube Type | 용량 |
3749900 | TC-20-M, with Pierceable Membrane | 20 ml |
3750000 | TC-50-M, with Pierceable Membrane | 50 ml |
Model | Tube Type | 용량 |
3700500 | ST-20 | 20 ml |
3700600 | DT-20 | |
3700700 | BMT-20-SUS Ball | |
3701500 | ST-50 | 50 ml |
3701600 | DT-50 | |
3701700 | BMT-20-SUS Ball |
