Model | Type | 속도 |
4023500 | T65 basic | 7,200 rpm (fixed) |
4234500 | T65 digital | 1,000 ~ 9,500 rpm |
9023500 | T65 digital package | |

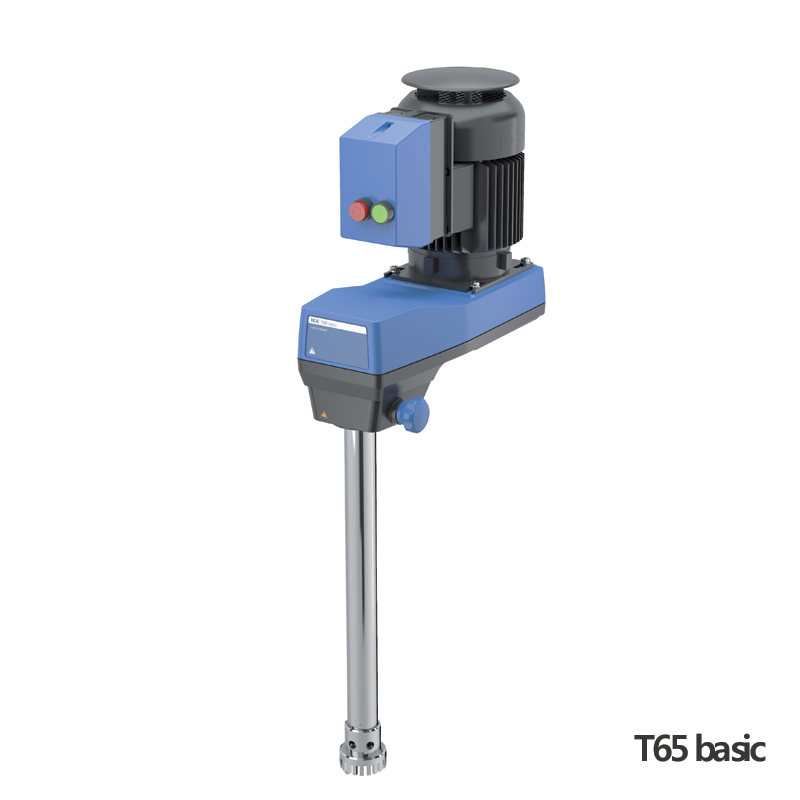

Type | T65 basic | T65 Digital |
Model | 4023500 | 4234500 |
Motor Rating in/out | 1,800W / 1,500W | 2,600W / 2,200W |
Volume Range | 2 ~ 50 L | |
Max. Viscosity | 5,000 mPas | |
Speed Range | 7,200 rpm(fixed) | 1,000 ~ 9,500 rpm |
Display | - | LED Display |
Size | w185×d400×h450 mm | w300×d400×h390 mm |
Power | 400V(삼상), 50/60 Hz | |

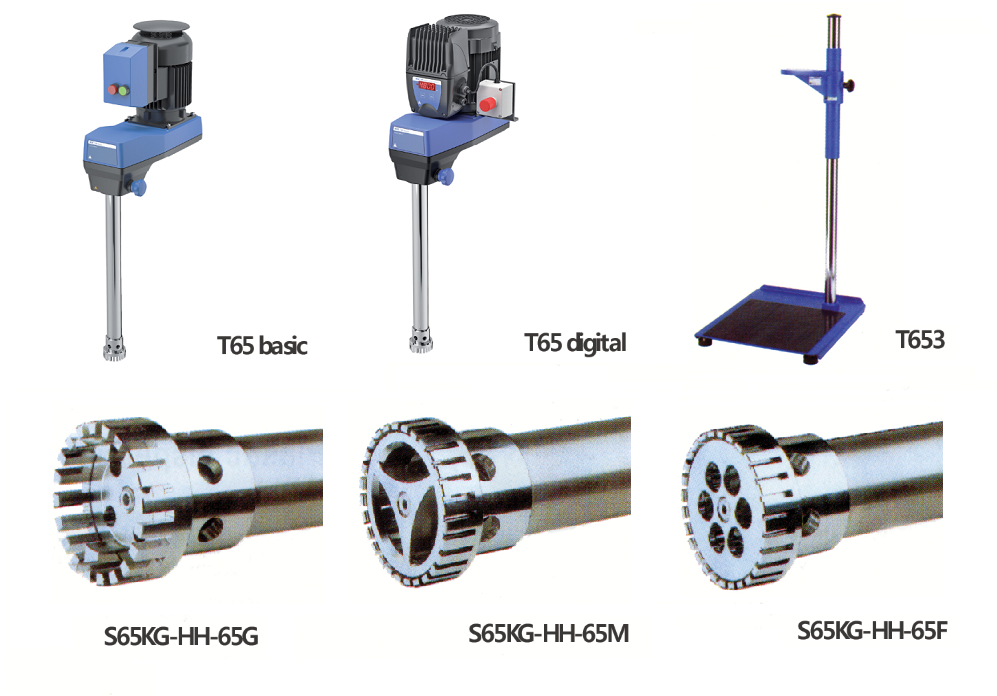

Model | 8003000 | 8003300 | 8003900 |
Type | S65KG-HH-G65G | S65KG-HH-G65M | S65KG-HH-G65F |
Working Range | 2-50 L | 2-40 L | 2-30 L |
Stator Diameter | 65 mm | ||
Rotor Diameter | 58 mm | ||
Immersion min/max | 90 / 450 mm | 80 / 450 mm | |
Shaft length | 520 mm | 510 mm | 500 mm |
재질 | AISI 316L, FFPM/SIC bearing (내열온도 180℃) | ||
Ultimate Suspension | 25-75 um | 20-50 um | 5-20 um |
Ultimate Emulsion | 5-25 um | 5-15 um | 1-10 um |
Model | Type | Height |
1608000 | T653 | 500 ~ 1000 mm |
