Model | Type | 용량 |

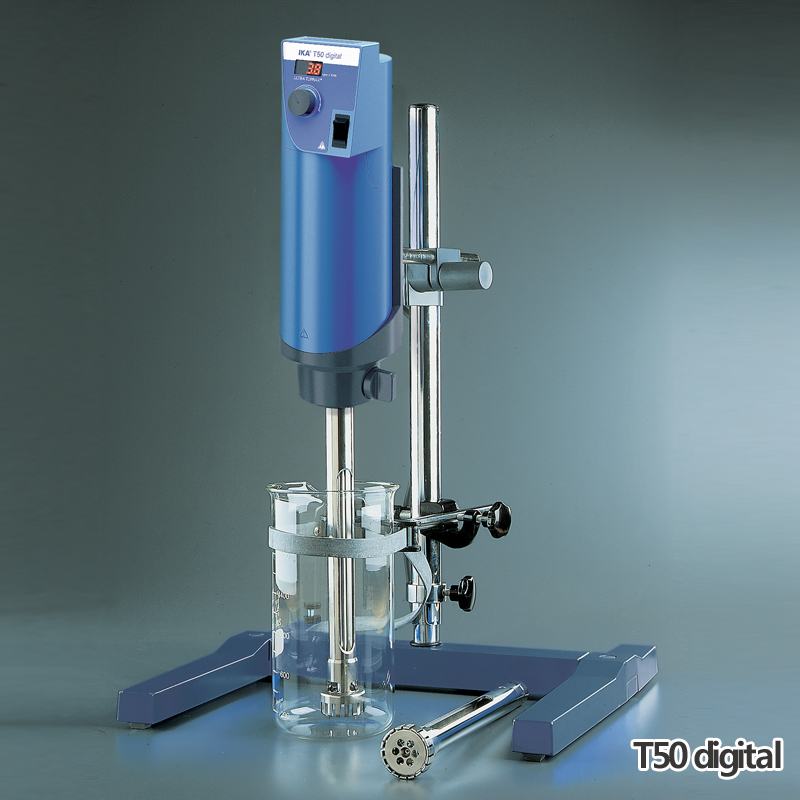

3787000 | T50 digital | 0.25 ~ 30 L |
Type | T50 digital |
Motor Rating in/out | 1,100W / 700W |
Volume Range | 0.25 ~ 30 L |
Max. Viscosity | 5,000 mPas |
Speed Range | 600 ~ 10,000 rpm |
Extension Arm | Φ16×L220 mm |
Size | w115×d139×h355 mm |
Model | Type | Stand Rod | Extension Arm |
2657800 | R270 | Φ25~36 mm | Φ5 ~ 21 mm |
2664000 | R271 | Φ34 mm | Φ16 mm |
Model | Type | 높이 조절 | Size |
1412100 | R2723 | O | 34×620~1010 mm |

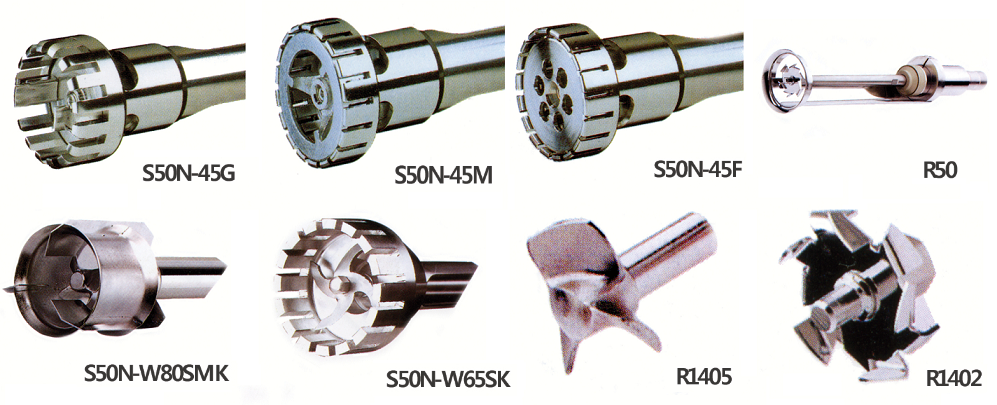

Model | 8003000 | 8003300 | 8003900 |
Type | S50N-G45G | S50N-G45M | S50N-G45F |
Working Range | 0.5-20 L | 0.5-15 L | 0.25-10 L |
Stator Diameter | 45 mm | ||
Rotor Diameter | 36 mm | 40.5 mm | 40 mm |
Immersion min/max | 70 / 250 mm | ||
Shaft length | 300 mm | 290 mm | |
재질 | AISI 316L, PTFE bearing (내열온도 180℃) | ||
Ultimate Suspension | 40-100 um | 25-50 um | 10-30 um |
Ultimate Emulsion | 10-30 um | 5-20 um | 1-10 um |
적용 Model | 1689300 | 8006300 | 8005100 | 1289800 | 1243300 |
Type | R50 | S50N-W80SMK | S50N-W65SK | R1405 | R1402 |
Working Range | 0.25 - 30 L | 1 - 50 L | 1 - 10 L | 0.25 - 30 L | 1 - 30 L |
Rotor Diameter | 50 mm (R1402포함) | 80 mm | 65 mm | 45 mm | 42 mm |
규격 | Stirring Shaft | Jet Mixer Head | Cutting Head | "R50"용 dissolver | |
Immersion | 180 mm | 140 / 350 mm | 80 / 350 mm | Optional | "R50"에 기본 포함 |
재질 | AISI 316L | ||||
