Model | Type | 작업 가능 용량 |

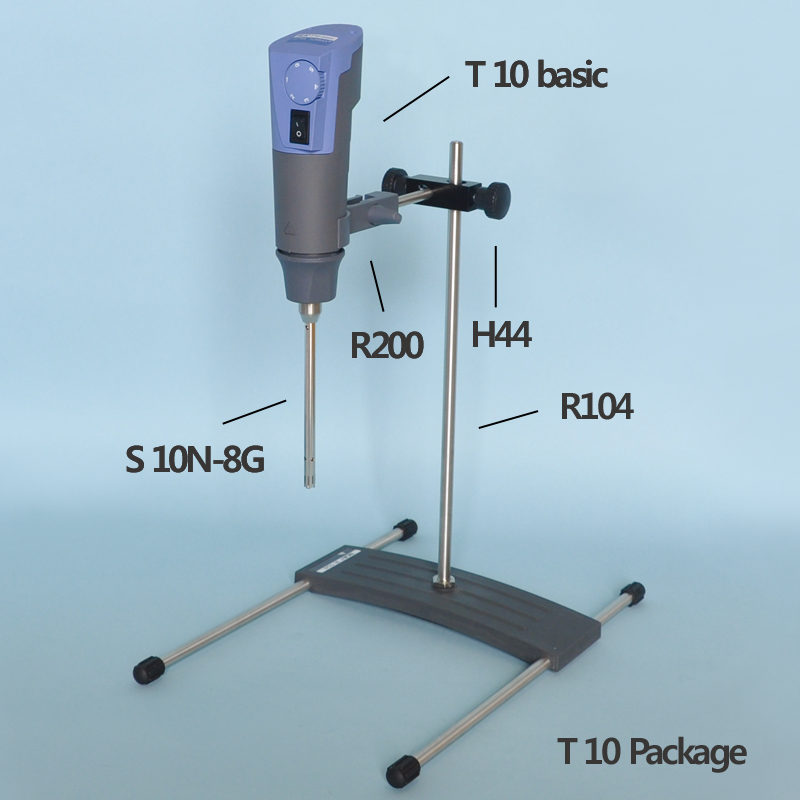

3737000 | T10 basic | 0.5 ~ 100 ml |
3737000P | T10 Package | |
3372000 | R200 | Clamp |
2437700 | H44 | Boss Head Clamp |
3386000 | R104 | Stand |
Type | T10 basic | |
Motor Rating in/out | 125W / 75W | |
Volume Range | 1 ~ 100 ml (H2O) | |
Max. Viscosity | 5,000 mPas | |
Speed Range | 8000 - 30000 rpm | |
Speed 조절 | 6 단 (Scale) | |
Size | Extension Arm | Ø8×L100 mm |
Overall | w63×d57×h210 mm | |
Power | 230 V, 50/60 Hz | |

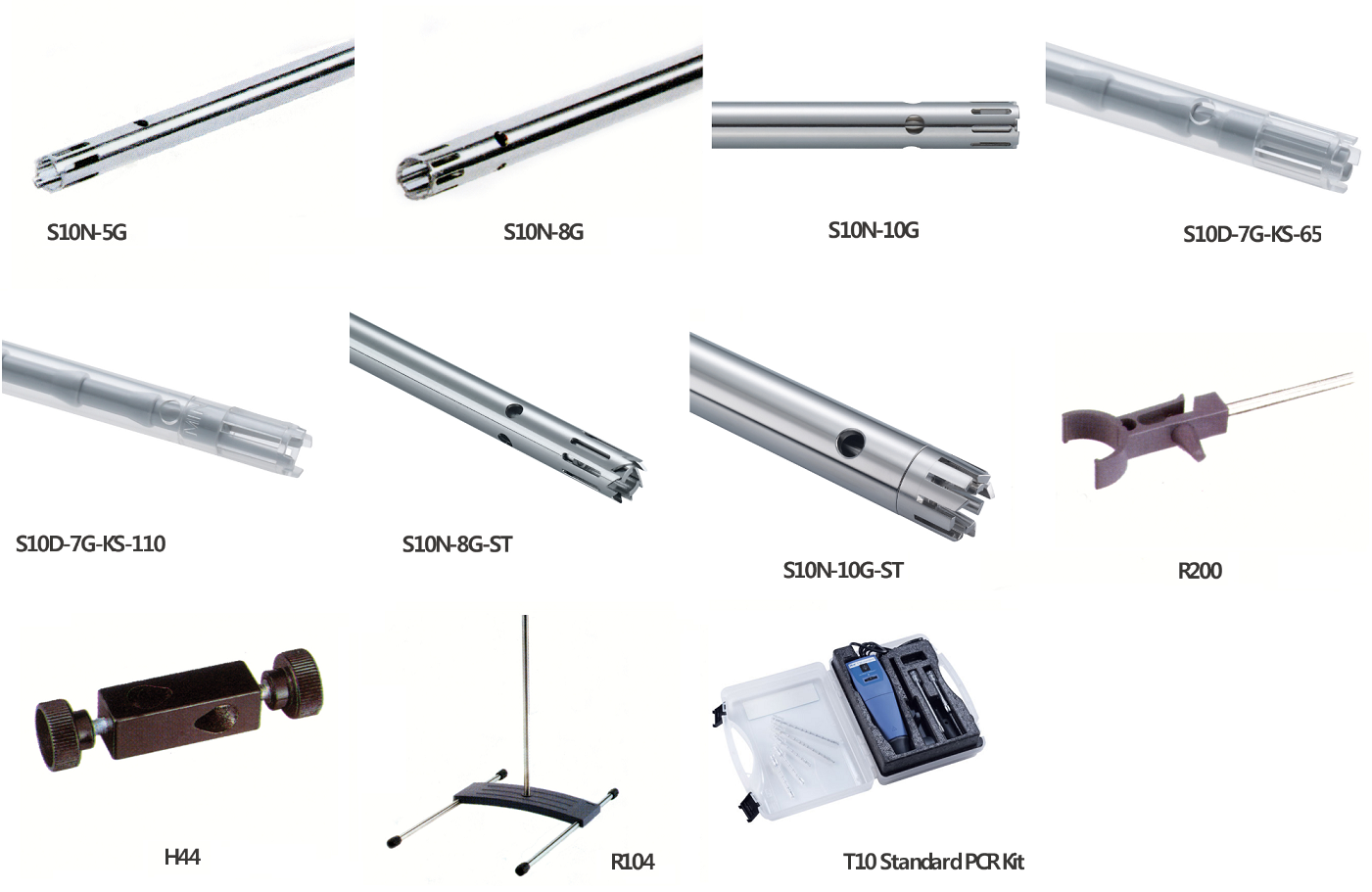

Model | 3304000 | 3305500 | 3370100 |
Type | S10N-5G | S10N-8G | S10N-10G |
Working Range | 0.5 ~ 10 ml | 1 ~ 50 ml | 1 ~ 100 ml |
Stator Diameter | 5 mm | 8 mm | 10 mm |
Roter Diameter | 3.8 mm | 6.1 mm | 7.6 mm |
Immersion min/max | 20 / 75 mm | 20 / 95 mm | 20 / 100 mm |
Shaft length | 92 mm | 115 mm | |
Ultimate Suspension | 5 - 25 um | ||
Ultimate Emulsion | 1 - 10 um | ||
Model | 3433225 | 3433325 |
Type | S10D-7G-KS-65 | S10D-7G-KS-110 |
Working Range | 1 ~ 20 ml | 1 ~ 40 ml |
Stator Diameter | 7 mm | |
Roter Diameter | 4.8 mm | |
Immersion min/max | 20 / 50 mm | 20 / 90 mm |
Shaft length | 65 mm | 110 mm |
Max. Temperature | 100℃, Autoclavable | |
재질 | Polycarbonate (PC) & Polysulfon (PCU), FDA 승인 | |
Model | 4446500 | 4446700 |
Type | S10N-8G-ST | S10N-10G-ST |
Working Range | 1 ~ 50 ml | 1 ~ 100 ml |
Stator Diameter | 8 mm | 10 mm |
Roter Diameter | 6.1 mm | 7.6 mm |
Immersion min/max | 22 / 95 mm | 23 / 100 mm |
Shaft length | 115 mm | |
Max. Temperature | 0.25 um | 0.2 um |
재질 | PTFE, AISI316L | |
