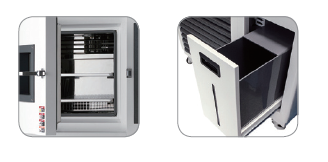

품명 : 항온항습기
* Feature
◎ 내구성실험,물성실험,의약품등의 변질실험 및 정밀실험에사용된다.
◎ Auto-Tuing기능이 내장되어
있어 정확한 온·습도 Control을 수행할 수 있다.
◎ 독립된 과열,과승,과전류 차단기,가습 수위조절장치등 안전장치가 장착되었다.
◎ 투시창은 5중 징공강화유리로 제작되어
내부를 쉽게 관찰 할 수 있다.
* Specification
|
MODELS
|
THC-P-150
|
THC-P-216
|
THC-P-350
|
|
제품코드 No.
|
93381
|
94644
|
95608
|
|
Capacity
|
150 Liters
|
216 Liters
|
350 Liters
|
|
Internal dimension (W x D x H) (mm)
|
500×500×600
|
600×600×600
|
600×700×800
|
|
External dimension (W x D x H) (mm)
|
1,010 x 890 x 1,710
|
1,200 x 990 x 1,800
|
1,200 x 1,100 x 1,900
|
|
Shelves
|
3 EA
|
3 EA
|
3 EA
|
|
Heater Capacity
|
4 KW
|
4.5 KW
|
6.4 KW
|
|
Power
|
Industrial Plug
|
Industrial Plug
|
Industrial Plug
|
|
Temp
|
Range
|
-10°C to 120°C (- 20°C, - 40°C, -60°C : Option), Accuracy : ±0.5°C
|
|
Controller
|
Digital PID programmable, Controller
|
|
Option
|
5.7 inch TFT-LCD color touch-screen precision-programmable controller with RS485 communication interface system with your PC for remote-monitoring and setting program
|
|
Humidity
|
Range(%)
|
30% to 98% RH
|
|
Accuracy
|
±3% at 70%
|
|
Controller
|
Digital PID controller
|
|
Internal material
|
Stainless steel
|
|
External material
|
Steel plate with powder coating
|
|
Door
|
Silicone packing door
|
|
Shelves
|
Stainless steel, Adjustable
|
|
Air-convection
|
Tangent flow fan with AC-motor
|
|
Inner sight lamp
|
Water proofed AC-30W
|
|
Freezer comp
|
Air cooling unit system
|
|
Safety device
|
Over, Under temp, Protector, Level monitor, Power breaker
|
|
Power
|
AC 220 V, 50/60 Hz, 1 Ø
|
|
