Model |
BIP-42 |
BIP-81 |
BIP-150 |
BIP-250 |
|
|
Capacity |
42 Liters |
81 Liters |
150 Liters |
250 Liters |
|
|
In Size(W×D×H)mm |
350 x 350 x 350 |
450×400×450 |
500×500×600 |
500×500×1000 |
|
|
OUT Size(W×D×H)mm |
450 x 560 x 650 |
625×740×950 |
660×790×1,300 |
660×790×1,700 |
|
|
Heater Capacity |
800 W |
800 W |
800 W |
1 KW |
|
|
Shelves |
2 EA |
2 EA |
2 EA |
3 EA |
|
|
Type |

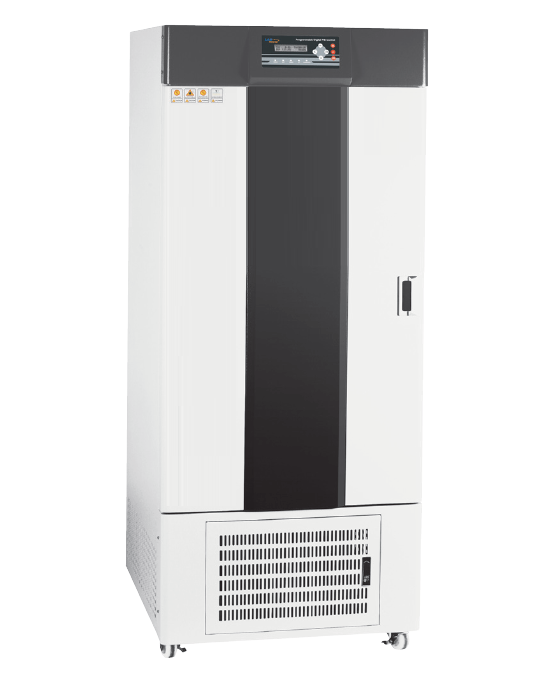

Forced Convection Incubator |
||||
|
Temp |
Range |
Working Temp : 10°C to 60°C (Accuracy : ±0.5°C) |
|||
|
Controller |
Program PID Controller 5 Pattern 18 Step |
||||
|
Regulaor |
Triac controller |
||||
|
Thermocouple |
Pt-100Ω |
||||
|
Timer |
Range |
99min 59sec |
|||
|
Controller |
Digital Display |
||||
|
Material |
Internal Material |
Stainless Steel Plate |
|||
|
Exterior Material |
Steel Plate with Powder Coating |
||||
|
Insulation |
Glass Wool |
||||
|
Door Packing |
Double Door, Magnetic Gum packing |
||||
|
Inner Door |
High Temperature safety glass of thickness 5mm |
||||
|
Shelves |
ABS Coating (Adjustable Type) |
||||
|
Safety Device |
Over Temperature Limit/Over Current Glass Fuse |
||||
|
Freezer Compressor |
Air cooling unit system |
||||
|
Supply Voltage &Frequency |
AC 230V, 50/60Hz |
||||
